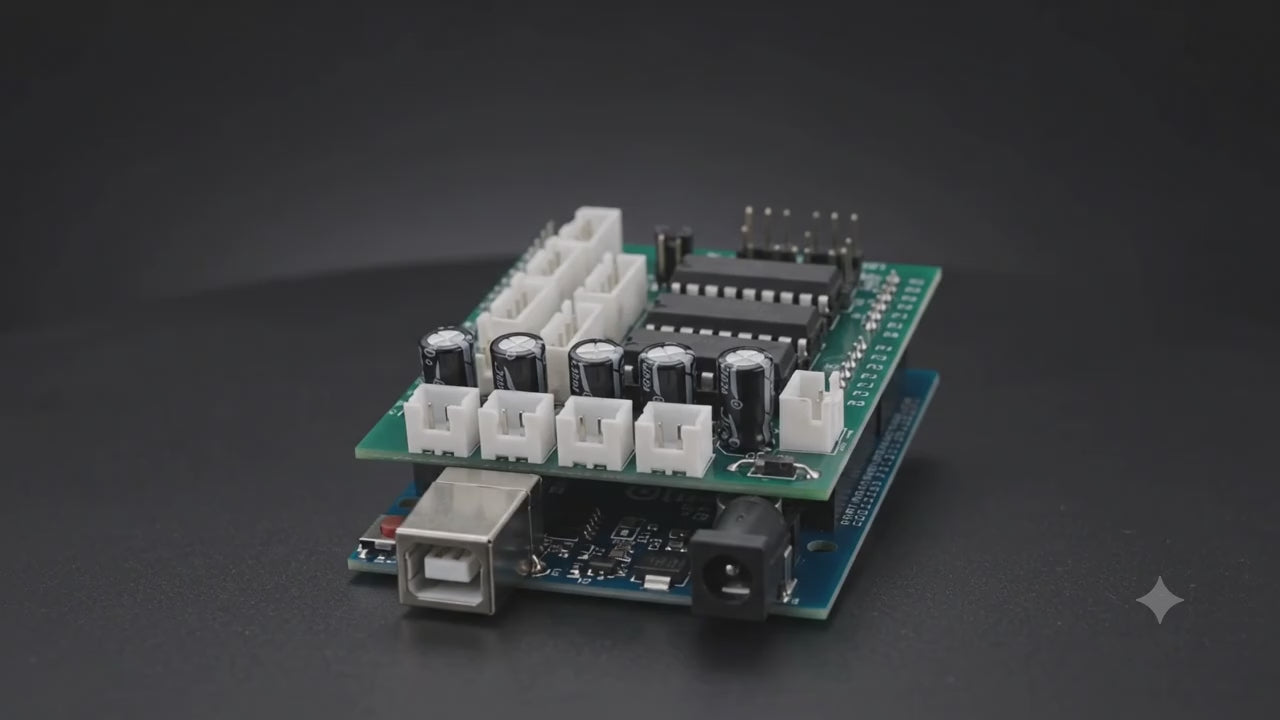

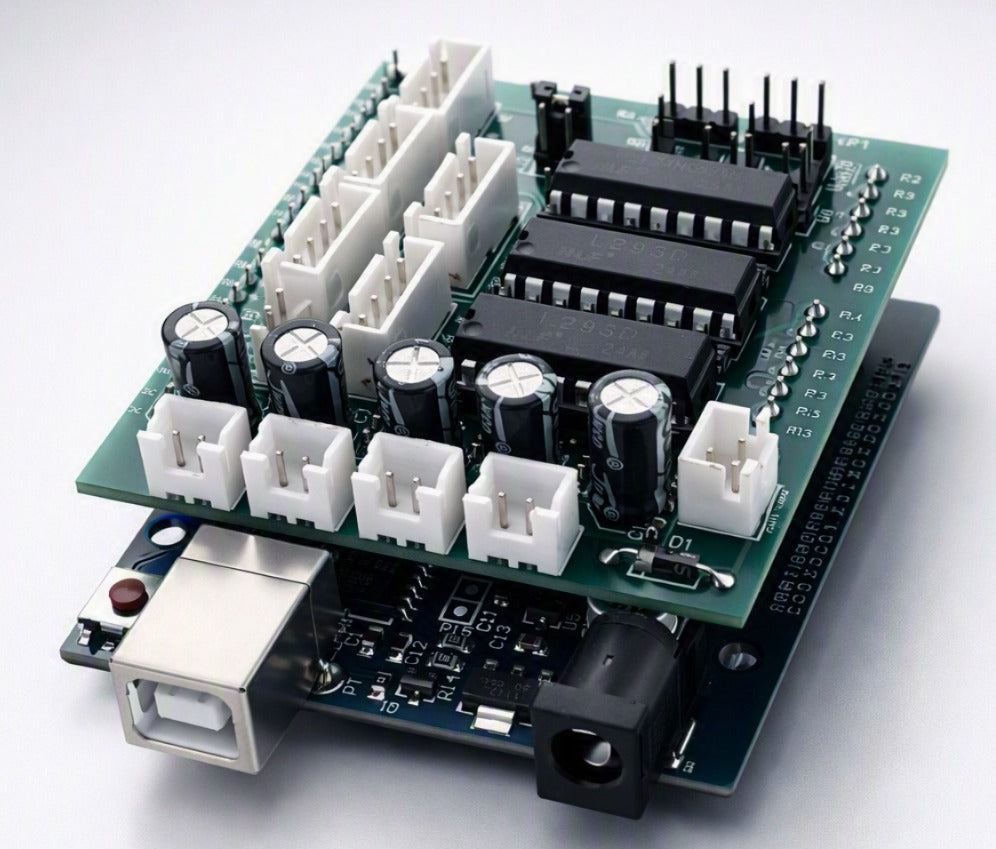

The BoticShield V1 is a plug-and-play motor driver shield built for the Arduino Uno R3. It stacks directly onto your Uno and gives you everything a wheeled or sensor-heavy robot needs in one board — 4 independent DC motor outputs, 3 ultrasonic ports, 5 servo ports, 6 analog sensor inputs, and dedicated I2C and UART connectors — all on keyed JST connectors so there's no loose wiring or reversed polarity. Pair it with the BoticShieldV1.h library and you can drive motors, read ultrasonic distance, and sweep servos with single-line function calls, cutting typical wiring time by more than half. Ideal for school robotics labs, STEM kits, and rapid prototyping.
───────────────────────────────────────────────────

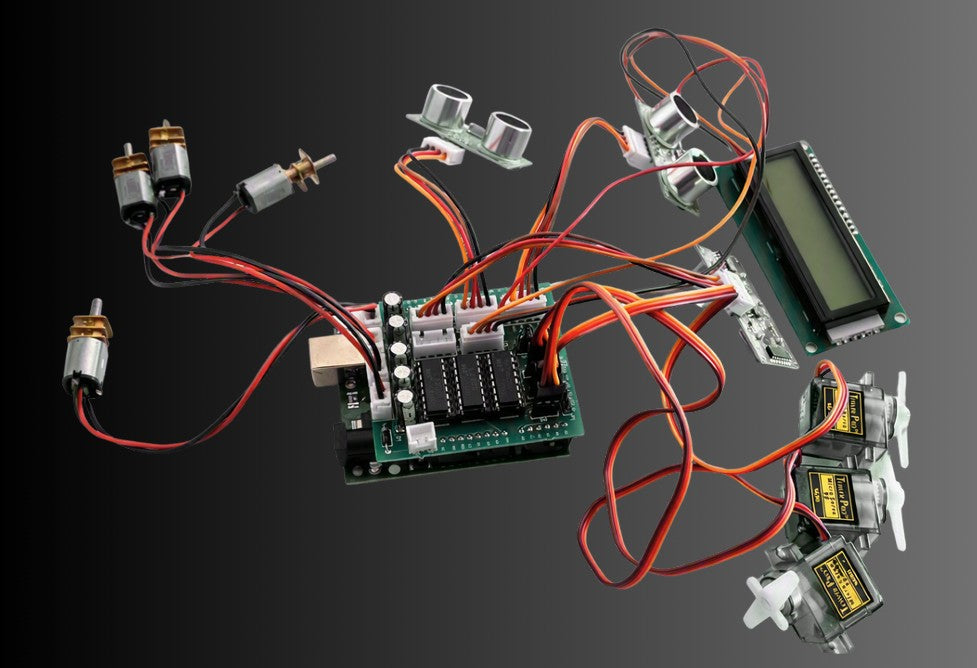

Projects You Can Build :

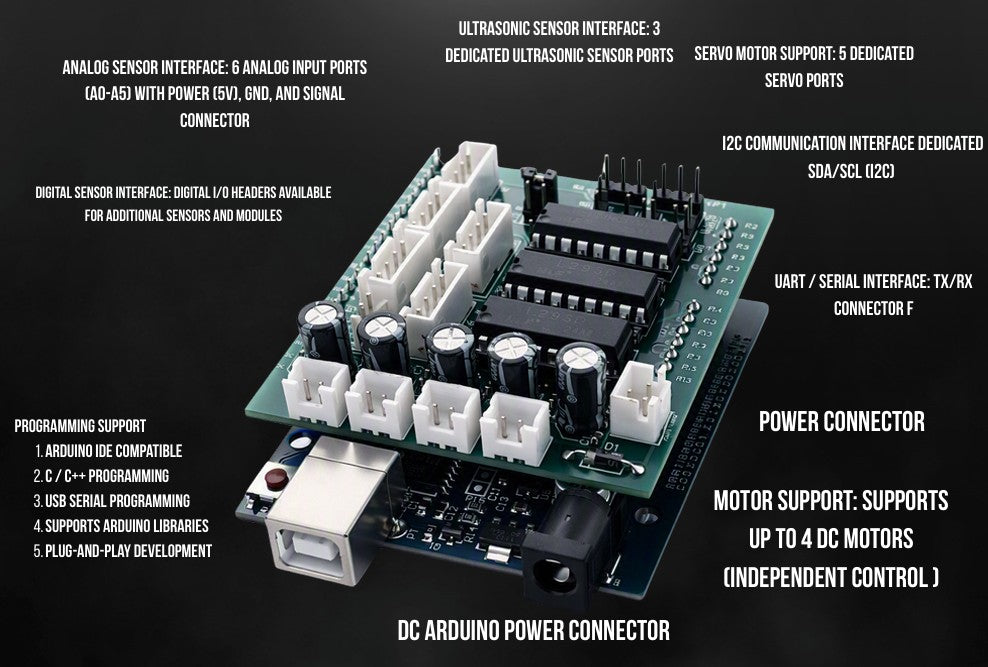

| Parameter | Description | |
|---|---|---|
| Board compatibility | Arduino Uno R3 and compatible boards | |
| Motor outputs | Up to 4 DC motors, independent control | |
| Ultrasonic ports | 3 (VCC, GND, TRIG, ECHO) | |
| Analog sensor ports | 6 (A0–A5) with 5V, GND, Signal | |
| Servo ports | 5, with 5V, GND, Signal | |
| I2C interface | Dedicated SDA/SCL connector | |
| UART/Serial interface | TX/RX connector (Bluetooth/Wi-Fi/GPS ready) | |
| Operating voltage | 5V DC | |
| Power input | Via Arduino Uno; external motor power supported | |
| Form factor | Arduino Uno R3 shield, stackable |
